D30 SCREENS
D30 FABRIC, GLAZED AND TOOLRAIL SCREENS
D30 STANDARD SPECIFICATION
- Silver aluminium posts only.
- Silver post infills.
- 32mm carcass as standard.
- Two feet as standard.
- 5mm frosted acrylic on all glazed screens.
- Two height adjusters.
D30 INFORMATION
- All widths quoted include posts.
- Other sizes available.

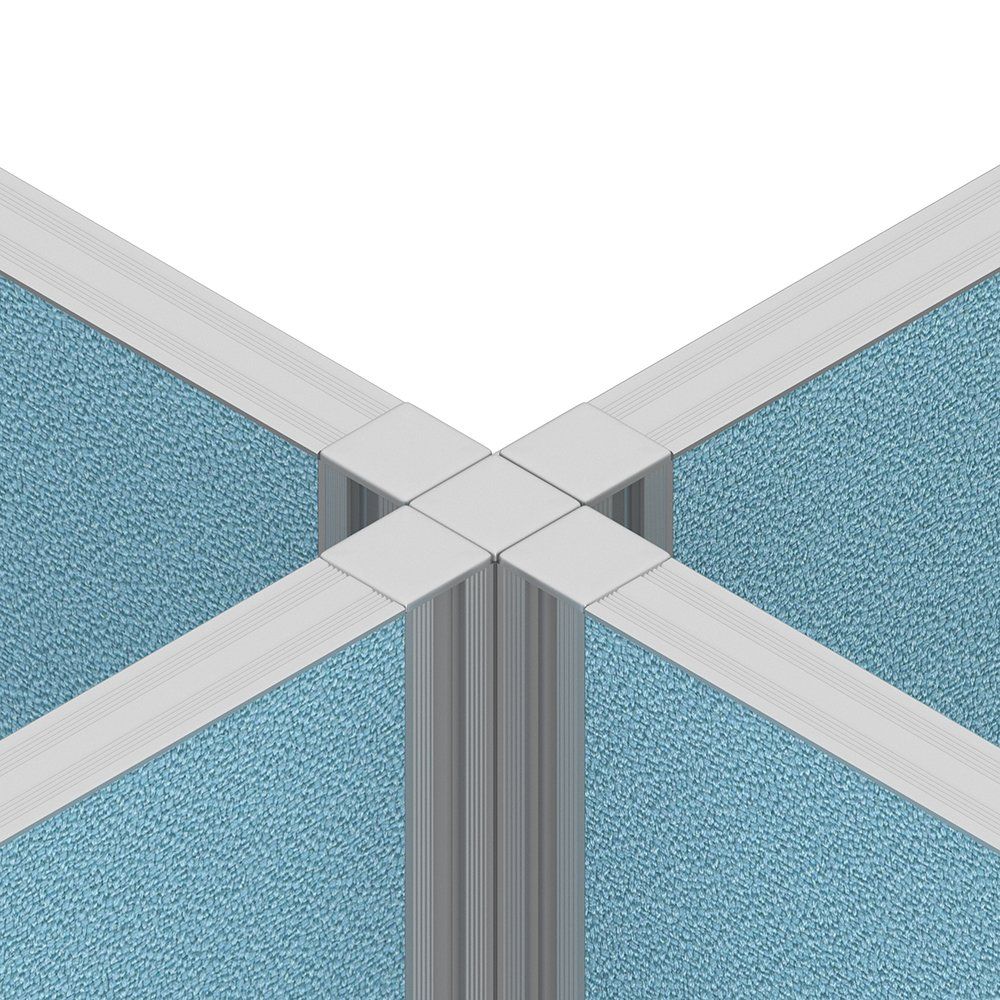

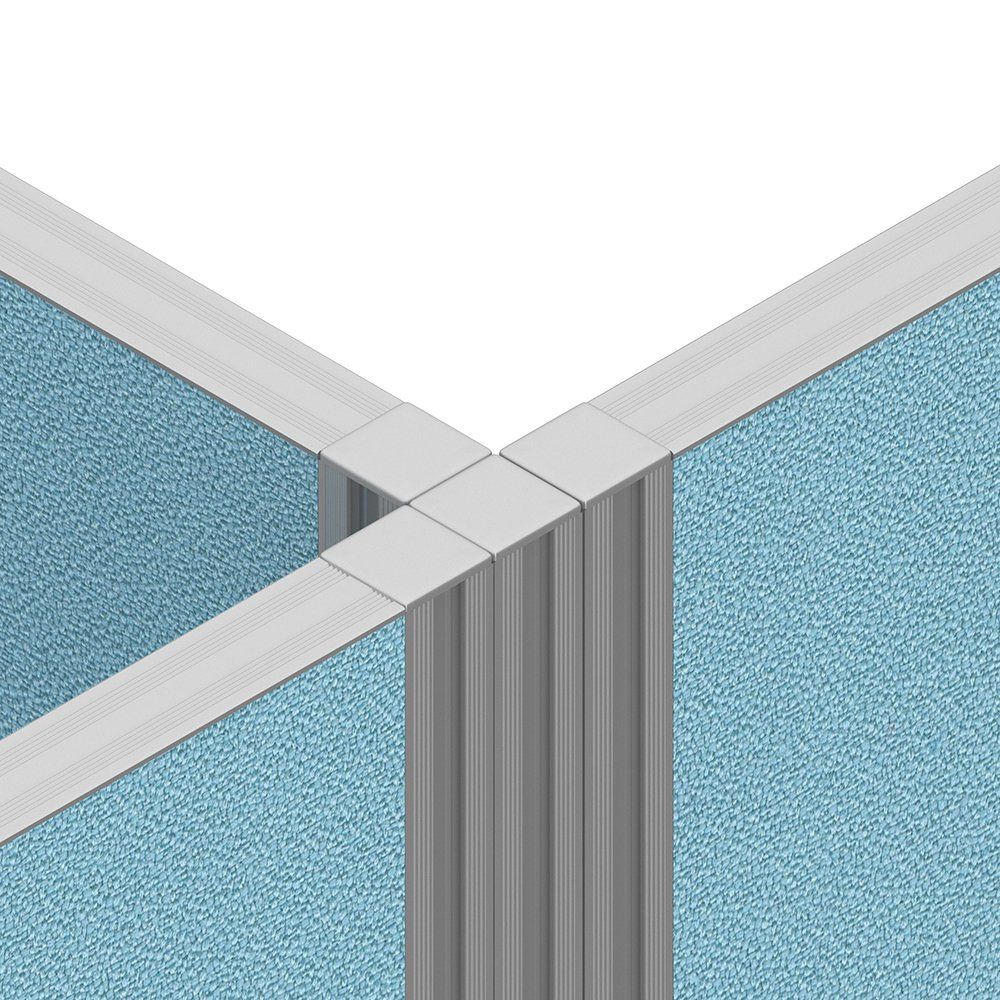

- 2, 3 and 4 Way Linking Posts available.
# IN CODE REFERS TO WIDTH CHOICE.
A 1000 HIGH, 800 WIDE FREESTANDING FLAT SCREEN WOULD BE D30/108
AN 1800 HIGH, 1500 WIDE FREESTANDING FLAT SCREEN WOULD BE D30/1815
# IN CODE REFERS TO WIDTH CHOICE.

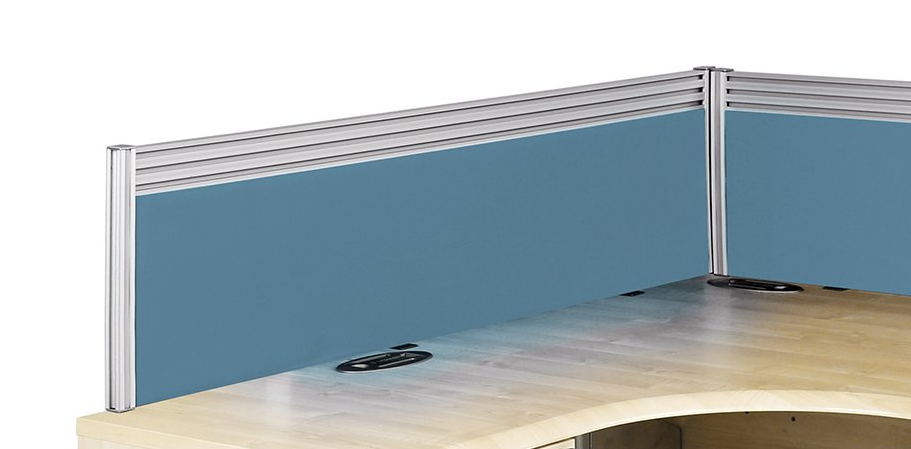

A 1000 HIGH, 800 WIDE TOOLRAIL SCREEN WOULD BE D30/108A
A 1200 HIGH, 1400 WIDE TOOLRAIL SCREEN WOULD BE D30/1214A
TOP GLAZED SCREENS ARE SUPPLIED AS STANDARD WITH TOP THIRD AS FROSTED GLAZING UNLESS SPECIFIED OTHERWISE.
# IN CODE REFERS TO WIDTH CHOICE.
A 1500 HIGH, W 800 FULL-GLAZED SCREEN WOULD BE D30/158FG
A 1600 HIGH, W1200 TOP-GLAZED SCREEN WOULD BE D30/1812TG
TOP GLAZED SCREENS ARE SUPPLIED AS STANDARD WITH TOP THIRD AS FROSTED GLAZING UNLESS SPECIFIED OTHERWISE.
# IN CODE REFERS TO WIDTH CHOICE.
A2000 HIGH, W 800 TOP-GLAZED SCREEN WOULD BE D30/208TG
A 2400 HIGH, W1200 TOP-GLAZED SCREEN WOULD BE D30/2412FL
D30 STANDARD SPECIFICATION
- Silver aluminium posts only.
- Silver post infills.
- 32mm carcass as standard.
- All desk mounts are supplied with standard G clamp brackets brackets unless otherwise specified.
- Other sizes available.
# IN CODE REFERS TO WIDTH CHOICE.
A 380 HIGH, 800 WIDE SCREEN WOULD BE D30/DMS388
A 480 HIGH, 1400 WIDE TOOLRAIL SCREEN WOULD BE D20/DMS4814A
SHARE THIS PAGE
D30 SCREENS RESOURCES
MEDIA BANK
To access and download the media folder, please click the link below. Includes:
- High & low resolution images
- Specification PDF
- CAD files

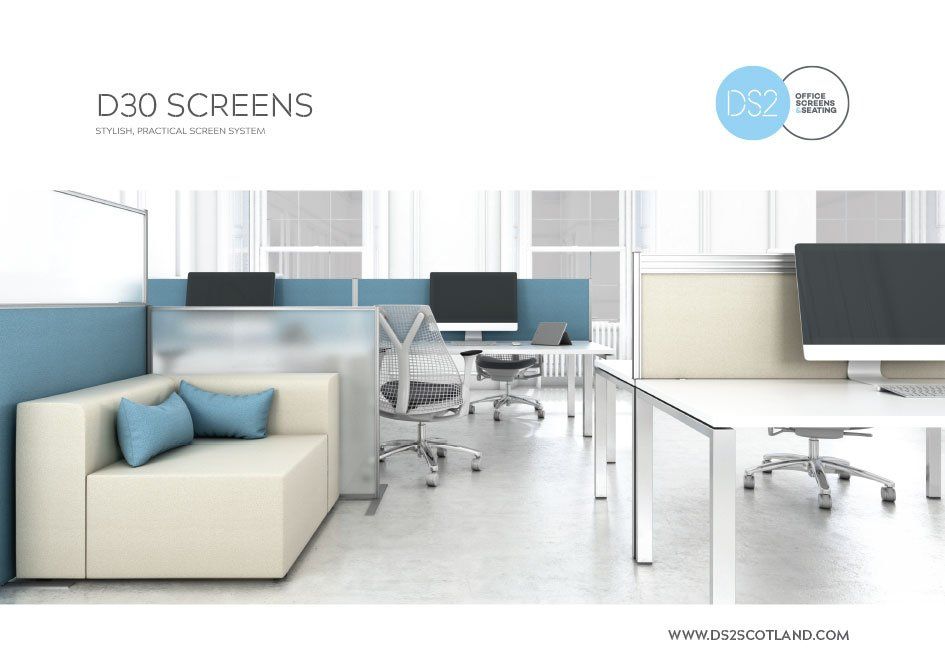

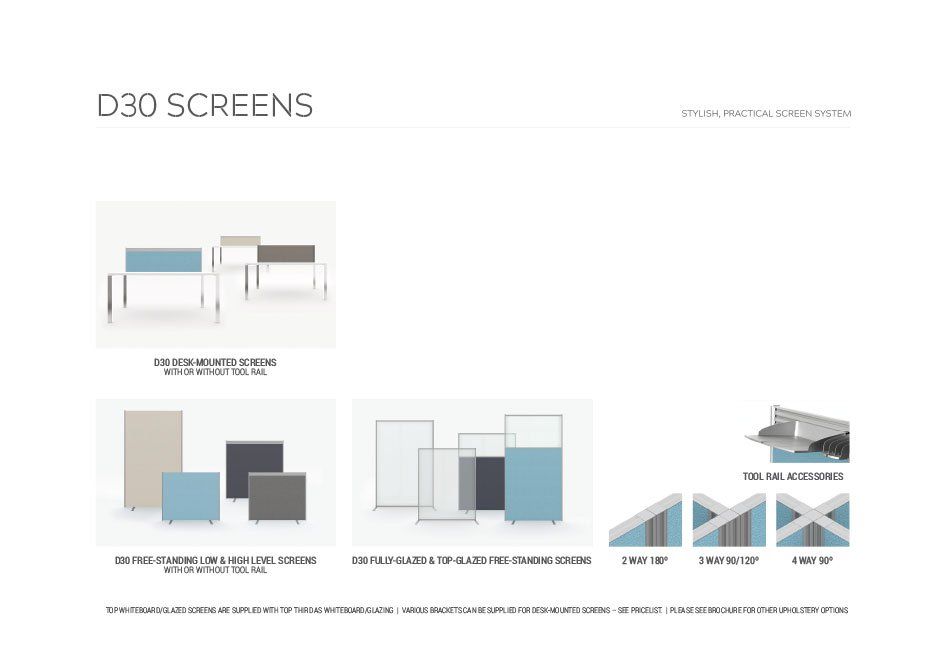

SPECIFICATION
