D10 SCREENS
D10 LINKING AND NON-LINKING SCREENS
D10 STANDARD SPECIFICATION
- PVC trim.
- PVC linking.
- 30mm carcass.
- Two height adjusters.
- Free-standing screens: plastic trim & two feet.
- Linking screens: one linking strip & one foot.
D10 INFORMATION

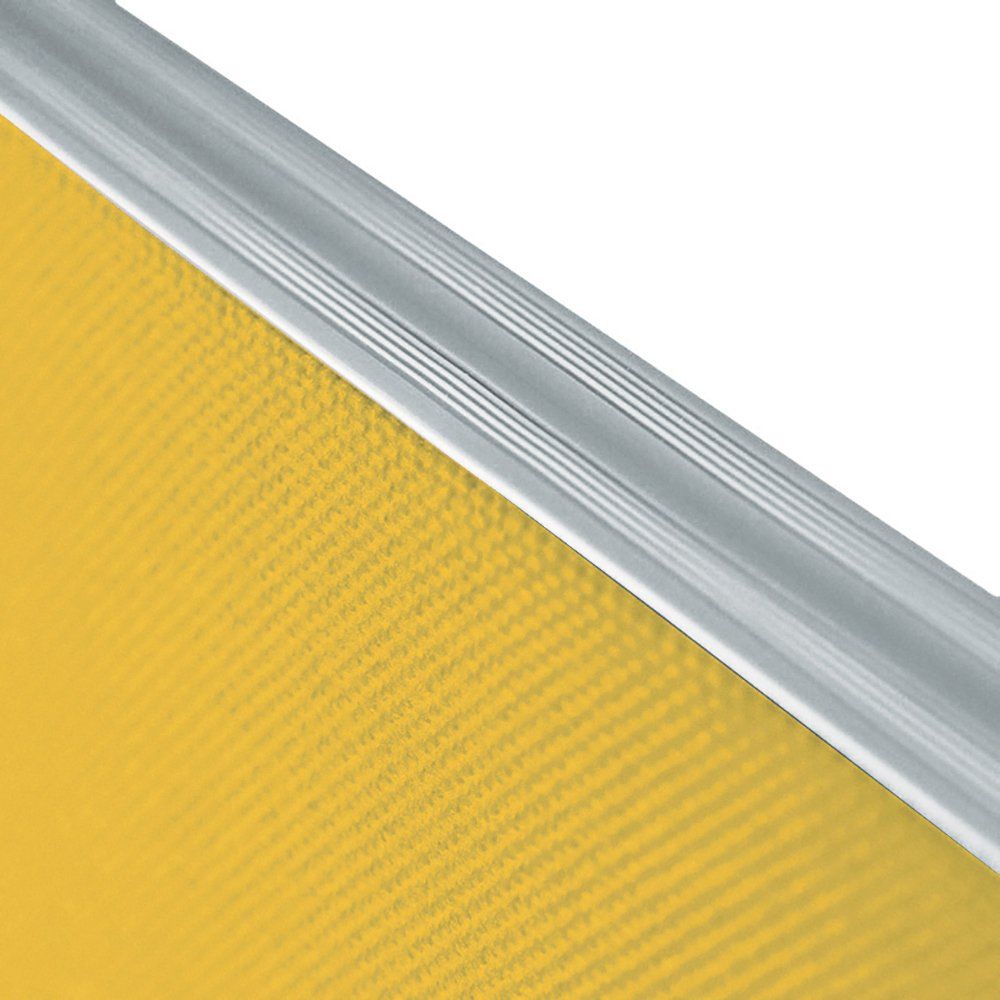

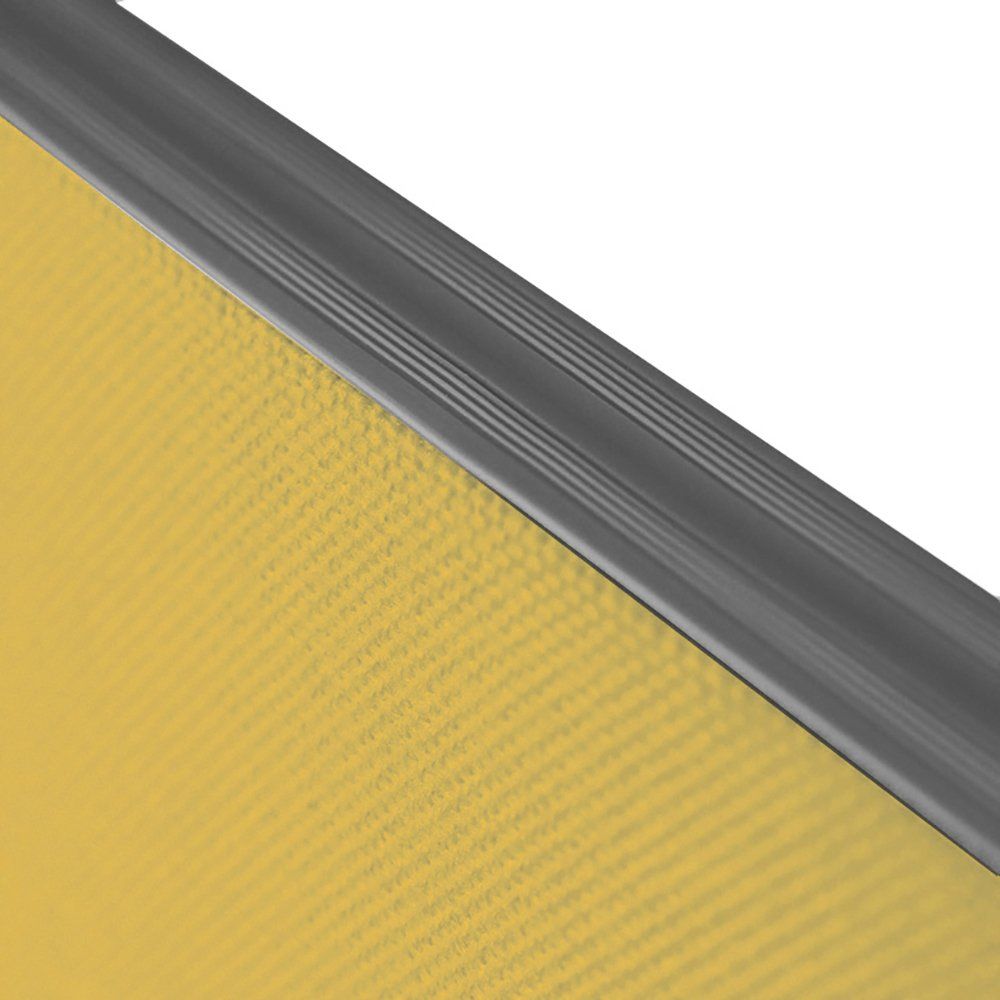

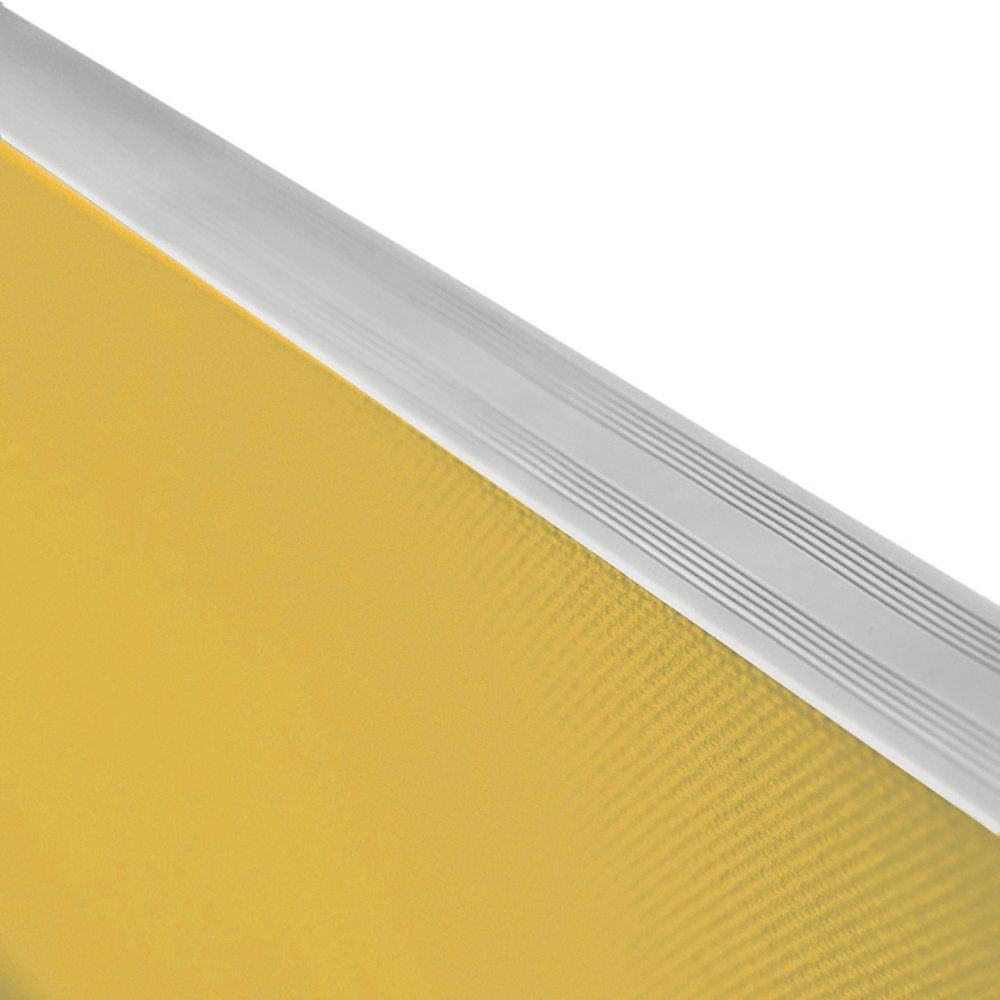

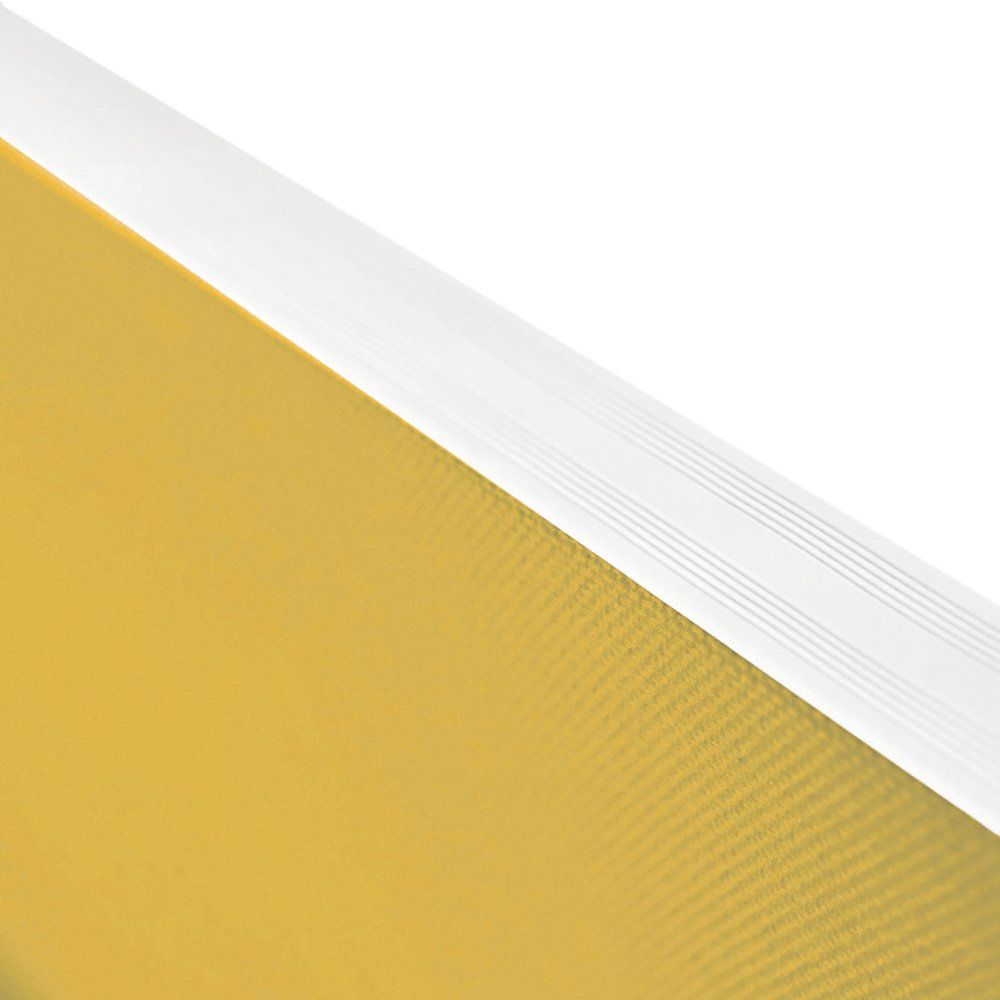

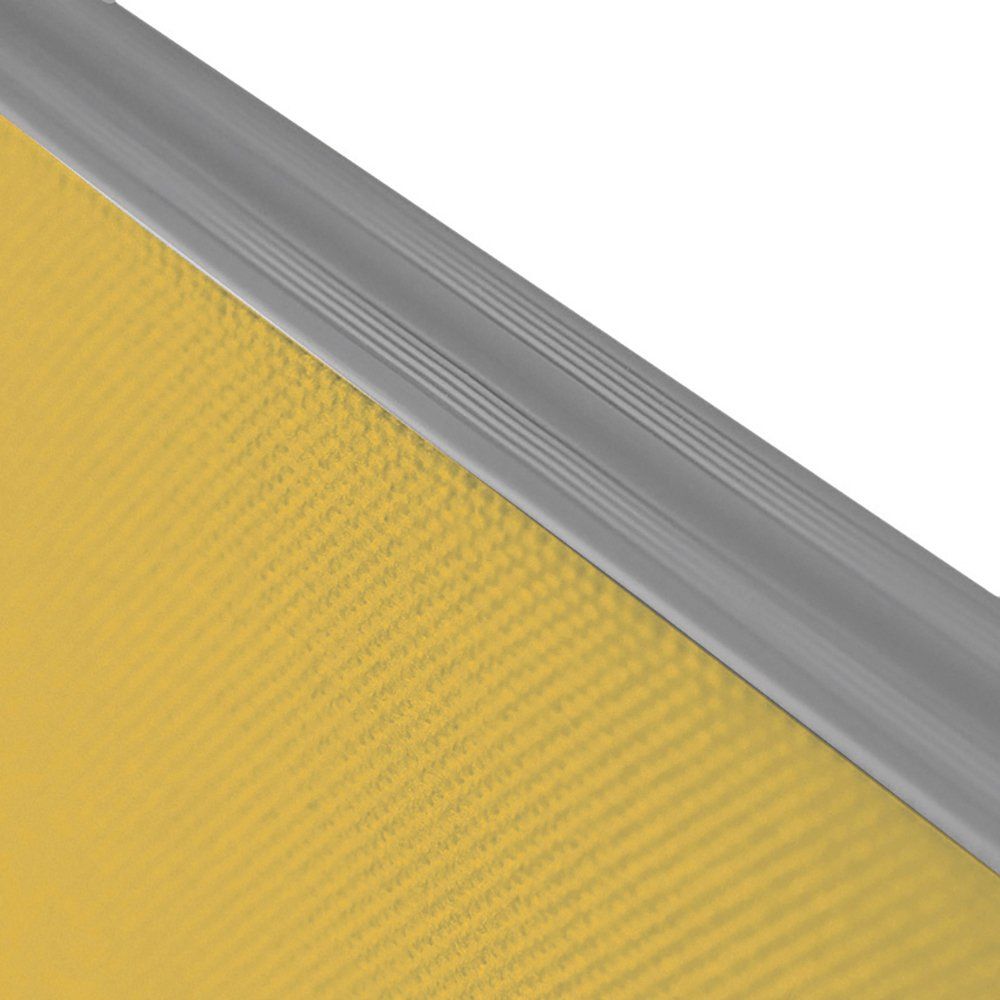

- Trim option: black, silver, light grey, dark grey, beech, white.
- Linking option: black, silver, light grey, dark grey.
- All feet are dark grey as standard.
- Any size available.
- Width of linking screen includes linking post.
- Use next price up for odd sizes.
# IN CODE REFERS TO WIDTH CHOICE.
A 1000 HIGH, 800 WIDE FREESTANDING FLAT SCREEN WOULD BE D10/108
AN 1800 HIGH, 1500 WIDE FREESTANDING FLAT SCREEN WOULD BE D10/1815
# IN CODE REFERS TO WIDTH CHOICE.
A1200-1000 HIGH, W 800 WAVE SCREENWOULD BE D10/12108W
AN 1800-1600 HIGH, 1400 WIDE CURVE SCREEN WOULD BE D10/181614CV

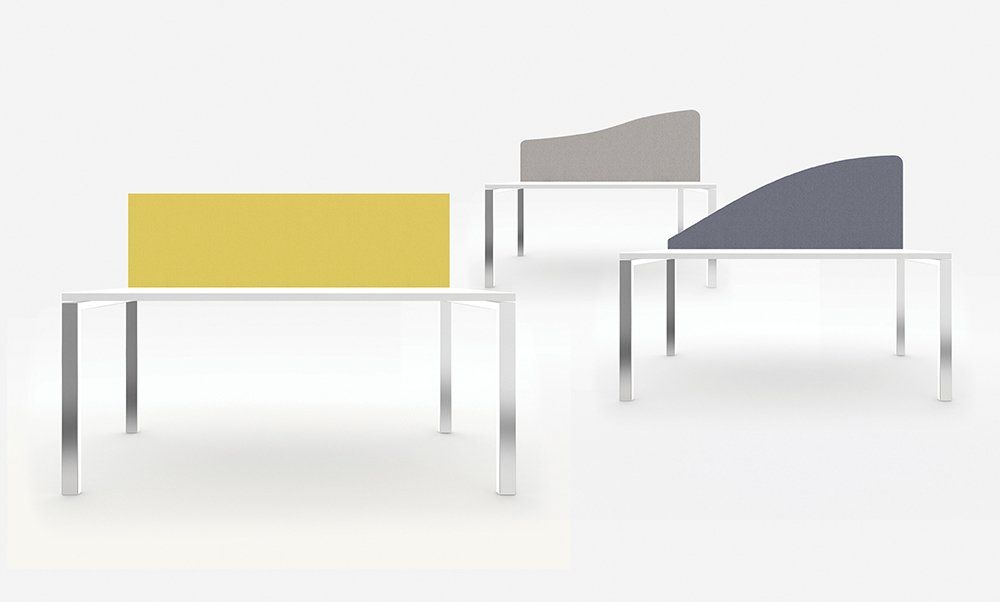

D10 STANDARD SPECIFICATION
- Ribbed PVC trim.
Optional: fabric trim or PVC linking. - 28mm carcass as standard.
- All desk mounts are supplied with DB1 brackets unless otherwise specified (for further bracket options see brackets page).
D10 INFORMATION

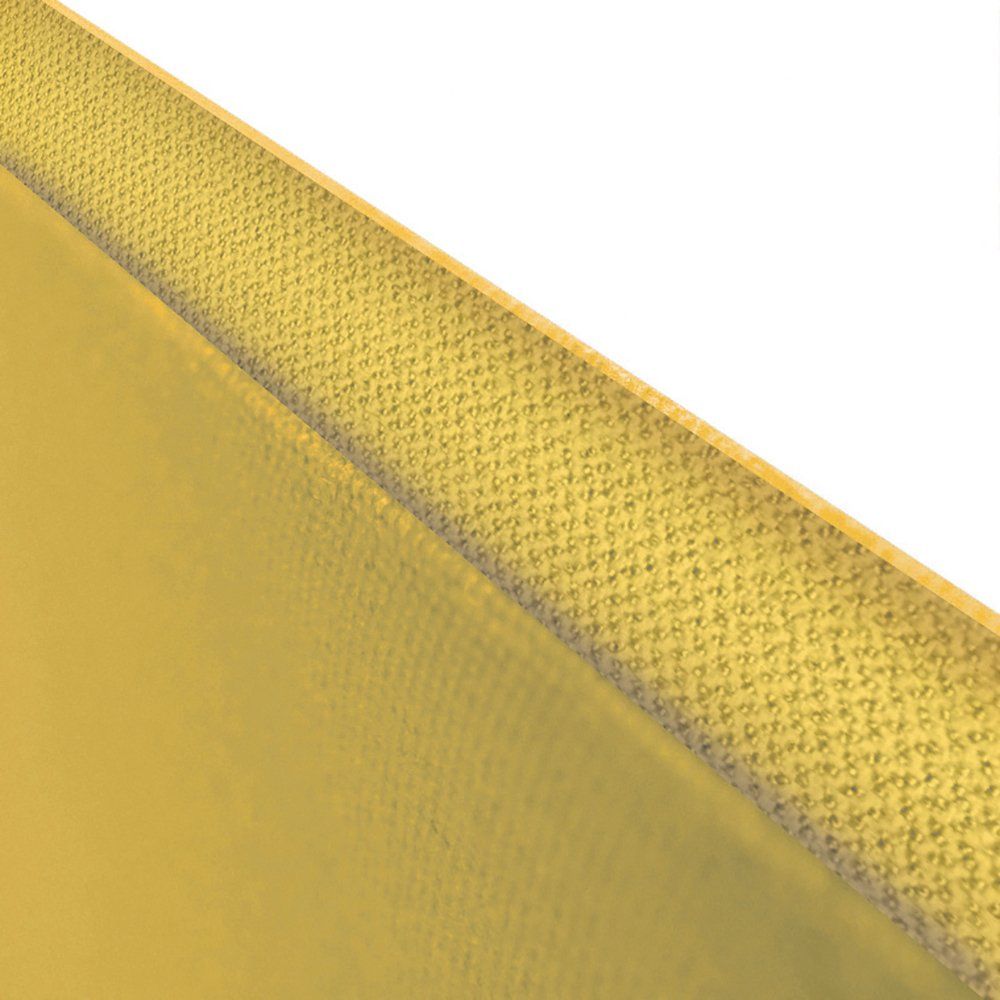

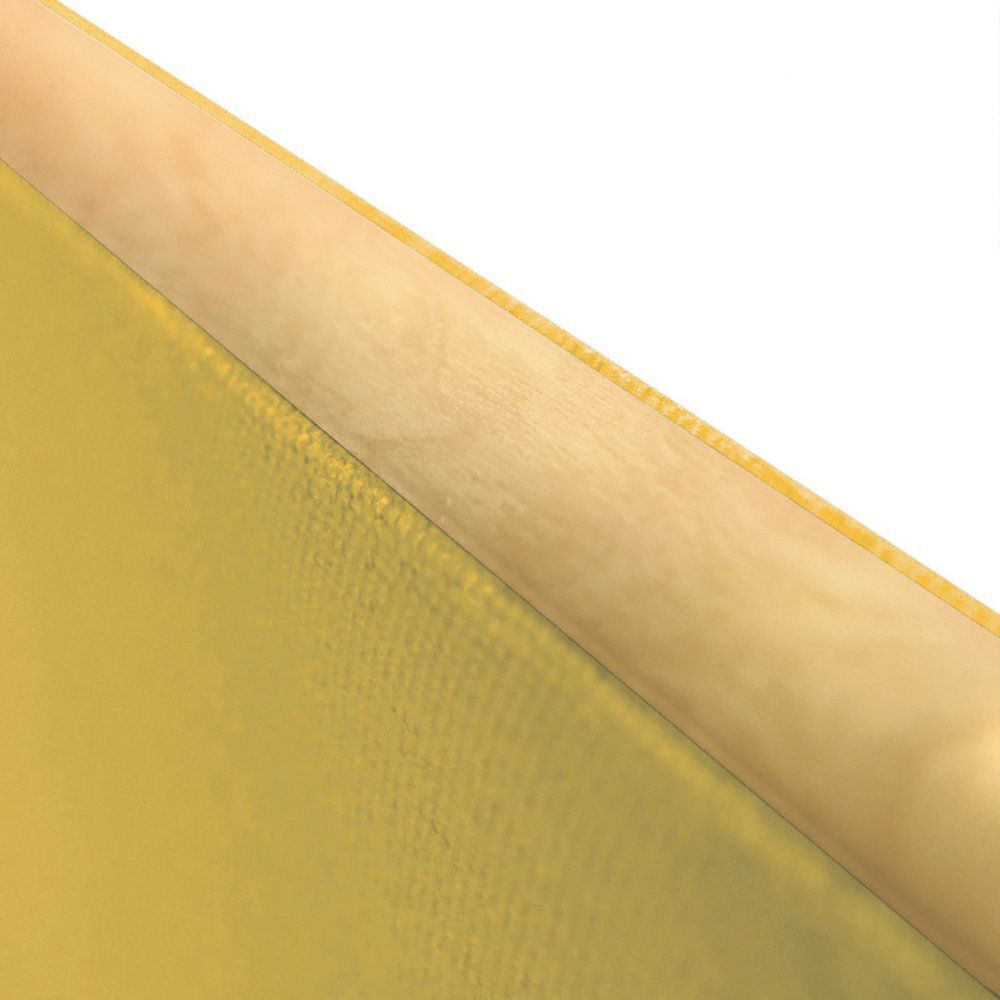

- Trim option: black, silver, light grey, dark grey, beech, white, fabric.
- Linking option: black, silver, light grey, dark grey.
- Desk-mounted screens 1200mm & over come with 3 bracket holes.
- All brackets available as standard.
- Use next price up for odd sizes.
# IN CODE REFERS TO WIDTH CHOICE.
A 380 HIGH, 800 WIDE STRAIGHT SCREEN WOULD BE D10/DMS388
A 480-180 HIGH, 1400 WIDE WAVESCREEN WOULD BE D10/DMS4814W
SHARE THIS PAGE
D10 SCREENS RESOURCES
MEDIA BANK
To access and download the media folder, please click the link below. Includes:
- High & low resolution images
- Specification PDF
- CAD files

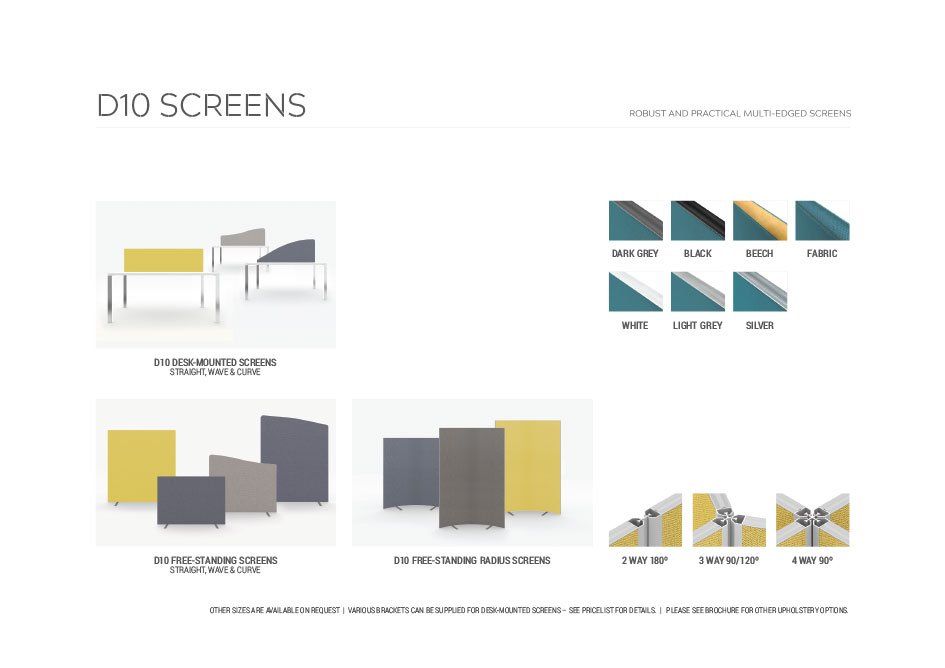

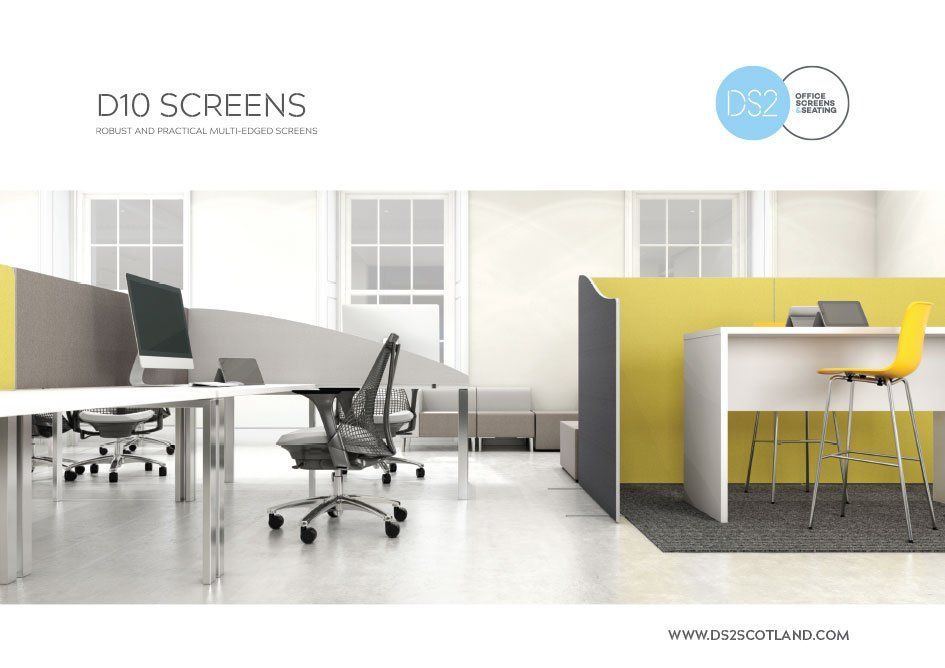

SPECIFICATION
