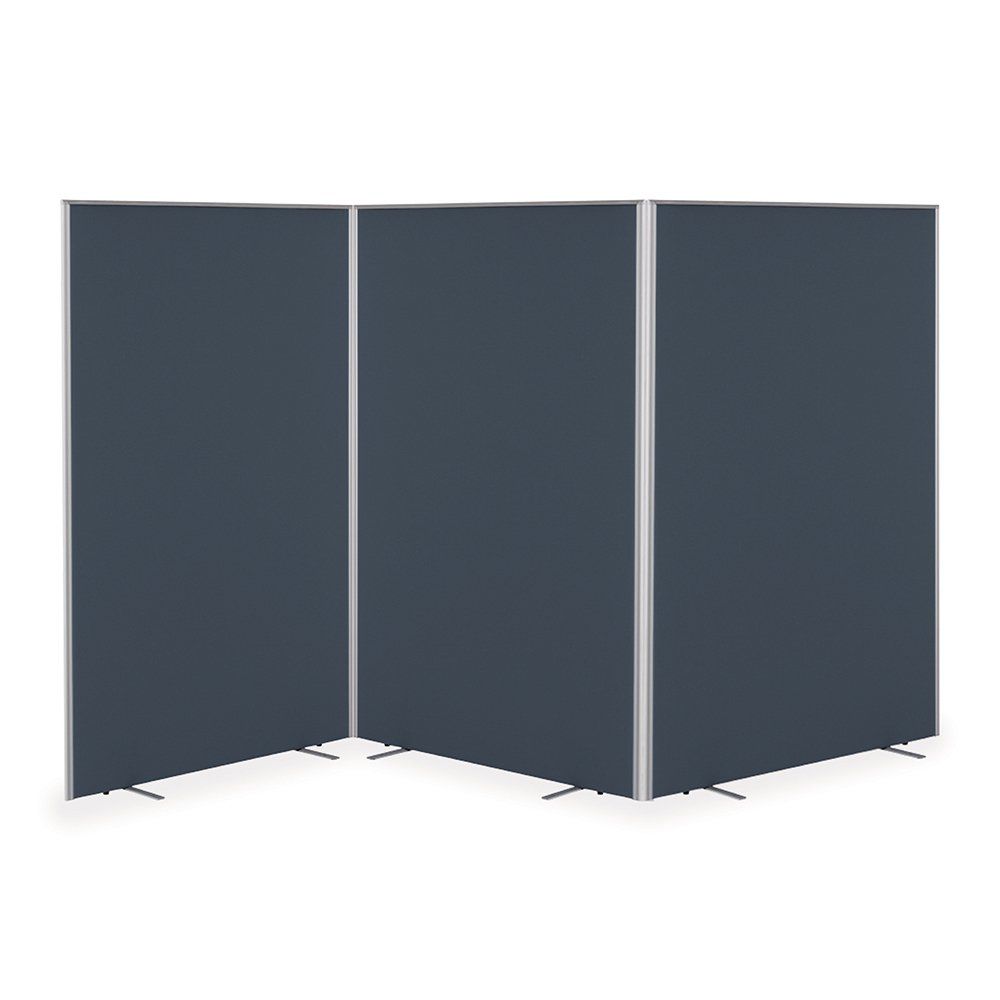

D50 SCREENS
D50 STANDARD SPECIFICATION
- Silver satin or white posts.
- Clip in post infills.
- 30mm carcass as standard.
- 5mm frosted acrylic on all glazed screens, other colour options available.
- Two height adjusters.
- Two silver or white feet.
- All widths quoted include posts.
- Other sizes available.

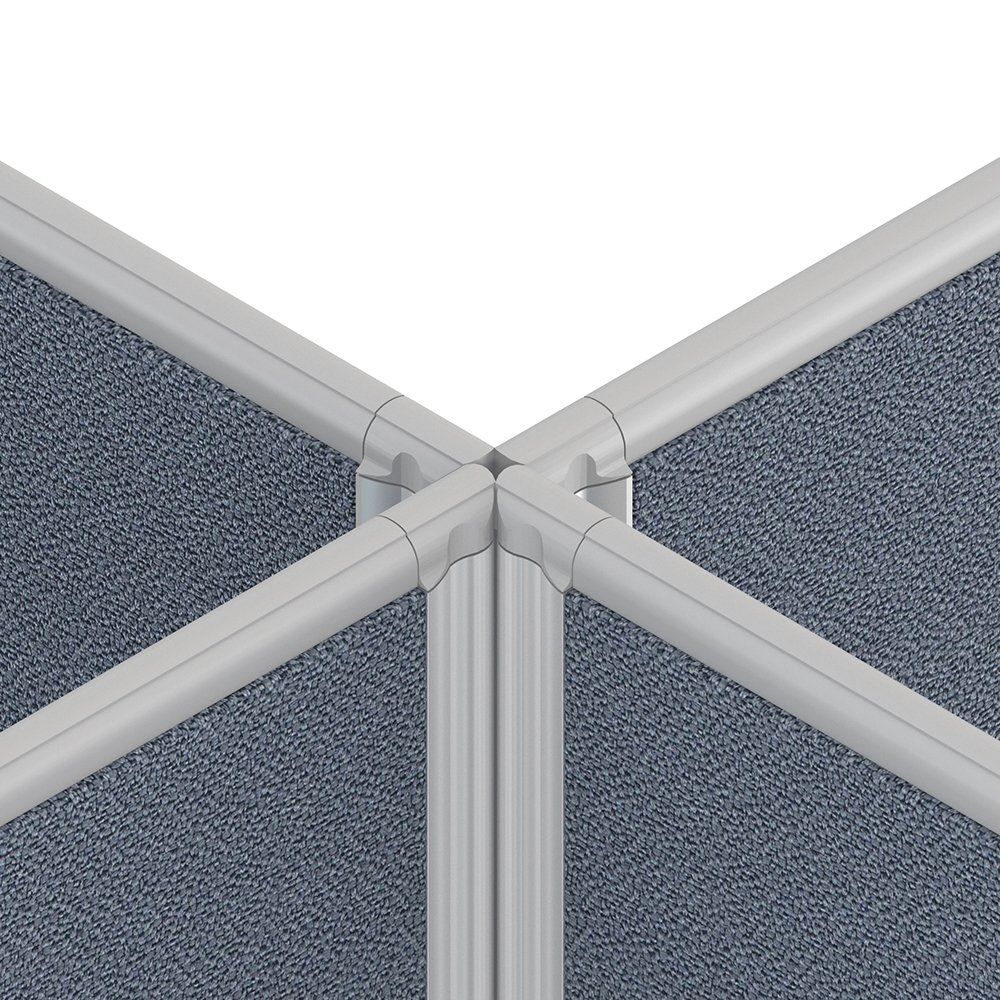

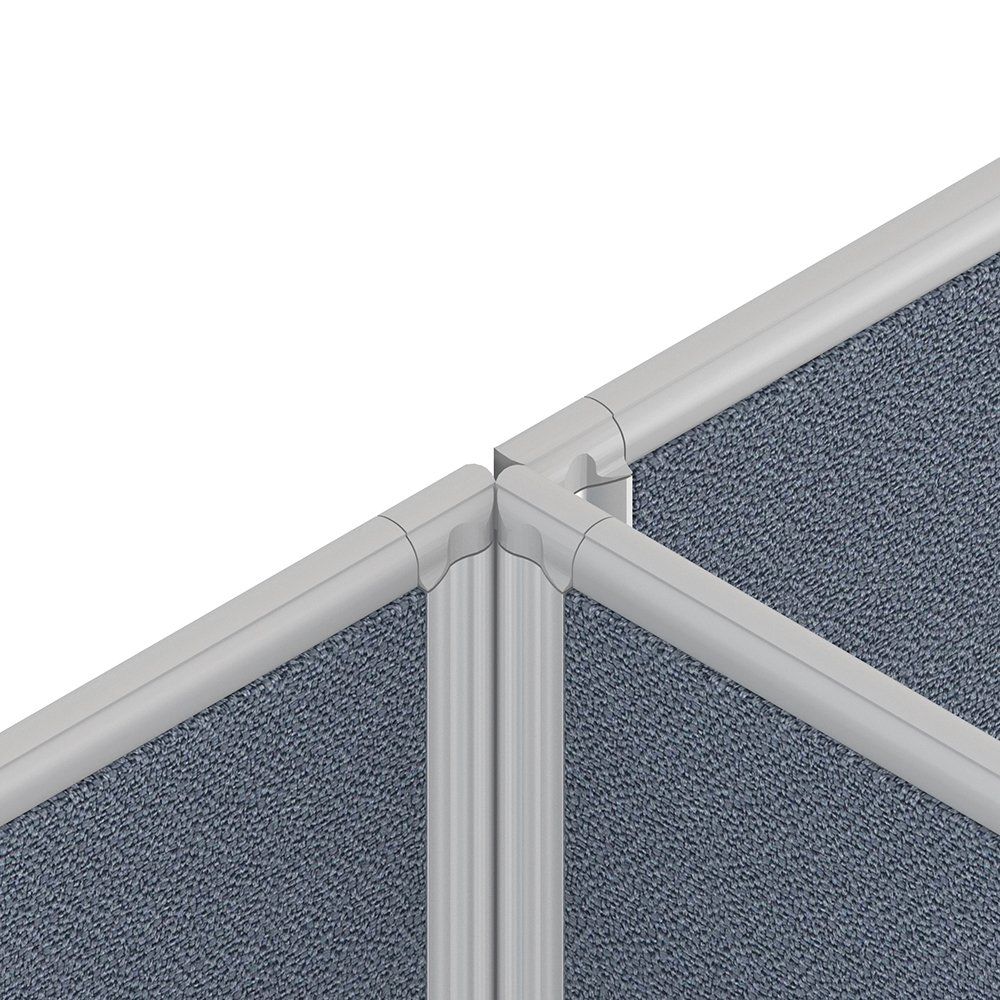

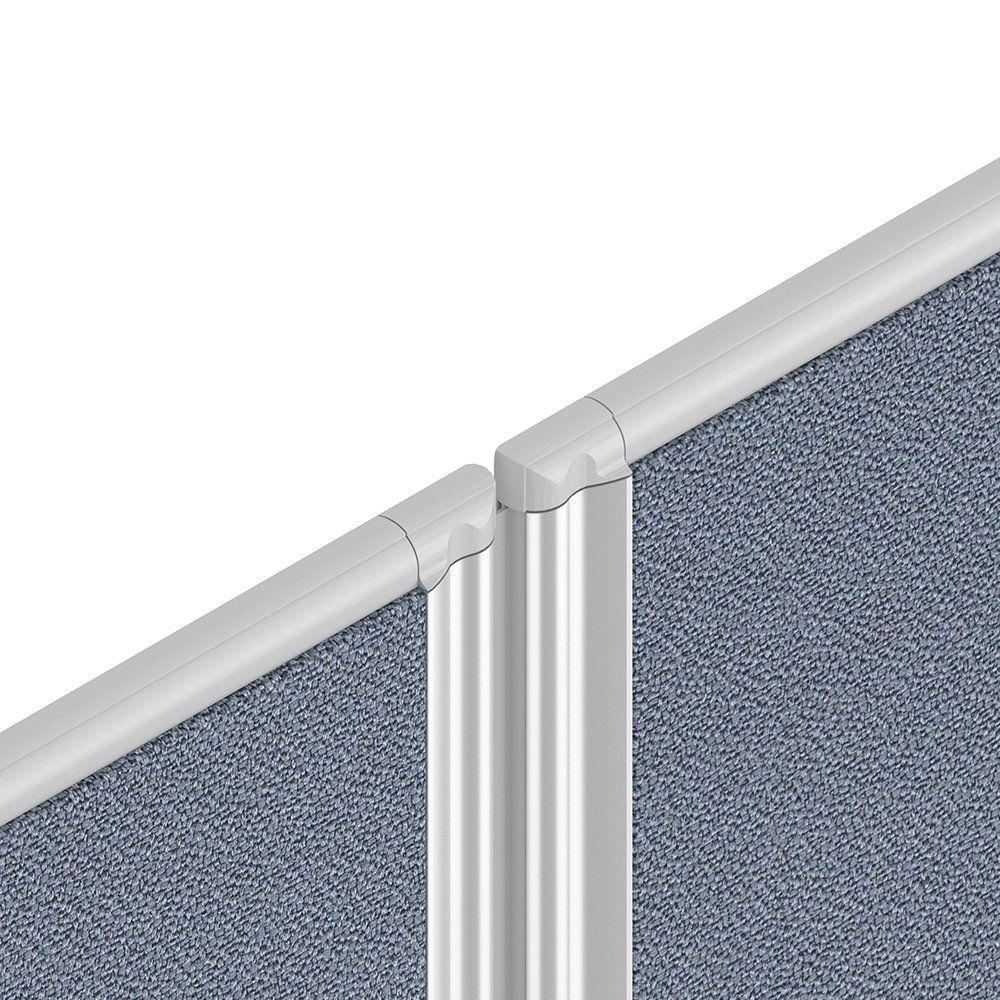

- 2, 3 and 4 Way Linking Posts available.
# IN CODE REFERS TO WIDTH (OR HEIGHT FOR RADIUS SCREENS) CHOICE.
A 1000 HIGH, 800 WIDE FREESTANDING SCREEN WOULD BE D50/108
AN 1800 HIGH, 1200 WIDE FREESTANDING RADIUS SCREEN WOULD BE D50/1812RAD
TOP GLAZED SCREENS ARE SUPPLIED AS STANDARD WITH TOP THIRD AS FROSTED GLAZING UNLESS SPECIFIED OTHERWISE.
# IN CODE REFERS TO WIDTH CHOICE.
A 2000 HIGH, 800 WIDE FREESTANDING TOP GLAZED SCREEN WOULD BE D50/208TG
A 1600 HIGH, 1400 WIDE FREESTANDING FULLY GLAZED SCREEN WOULD BE D50/1614FG
TOP WHITEBOARD SCREENS ARE SUPPLIED AS STANDARD WITH TOP THIRD AS WHITEBOARD UNLESS SPECIFIED OTHERWISE.
#
IN CODE REFERS TO WIDTH CHOICE.
A 1500 HIGH, 800 WIDE TOP WHITEBOARD SCREEN WOULD BE D50/158TW

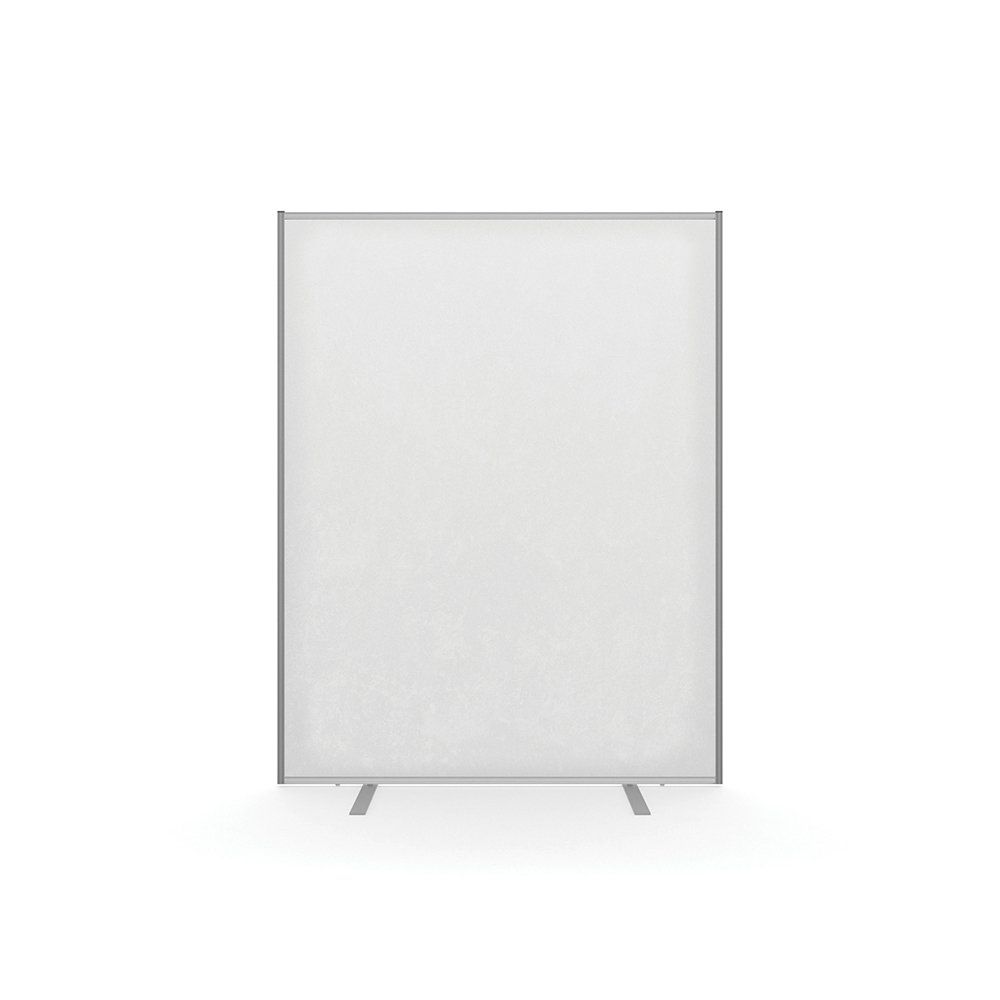

A 1800 HIGH, 1200 WIDE FULL WHITEBOARD SCREEN WOULD BE D50/1812WB
D50 FABRIC TOOLRAIL SCREENS
#
IN CODE REFERS TO WIDTH CHOICE.
A 1000 HIGH, W 800 TOOLRAIL SCREEN WOULD BE D50/108A
A 1200 HIGH, W1400 TOOLRAIL WOULD BE D50/1214A
WIDTHS SHOWN ARE PER SCREEN

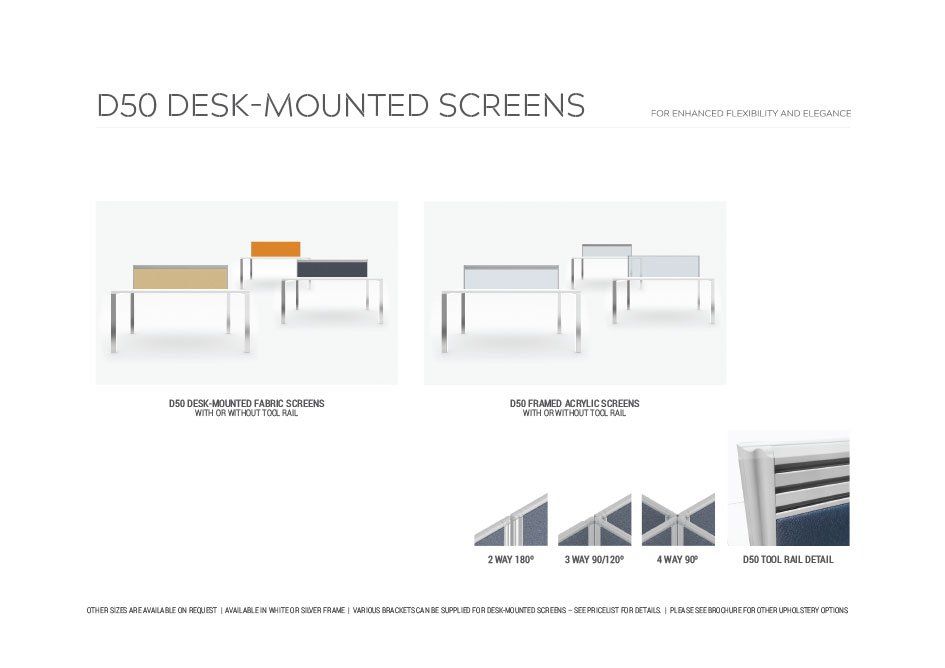

D50 STANDARD SPECIFICATION
- Silver satin or white posts.
- Clip in post infills.
- 30mm carcass as standard.
- 5mm frosted acrylic on all glazed screens, other colour options available.
- All desk mounts are supplied with DB1 brackets unless otherwise specified.
D50 INFORMATION
- Any size available.
- Use next price up for odd sizes.
- 2, 3 & 4 Way linking strips available.
- Desk mounted screens 1200mm & over come with three bracket holes.
- All brackets available as standard.
# IN CODE REFERS TO WIDTH CHOICE.
A 380 HIGH, 800 WIDE SCREEN WOULD BE D50/DMS388
A 400 HIGH, 1400 WIDE TOOLRAIL SCREEN WOULD BE D50/DMS4014A
# IN CODE REFERS TO WIDTH CHOICE.
A 400 HIGH, 800 WIDE SCREEN WOULD BE D50/ACR408
A 400 HIGH, 1400 WIDE TOOLRAIL SCREEN WOULD BE D50/ACRTOOL4014
